Kit - DC Distribution Board

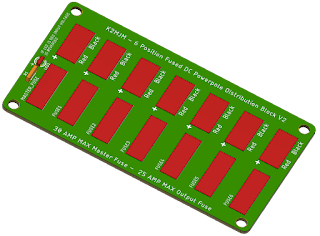

This is a rough draft of this page.  But the board looks something like the image below.

It has 6 output connections and 1 input.  Should support 30 Amps total.  We used extra thick and very wide traces.  It comes with the Power Pole connectors, LED that turns red if you input power is reversed.  It supports both standard automotive blade fuses as well as the mini version. Once I get one build I will post a picture.
